Center-Drive Rotary Tiller
Contact Us
Home / Products / Rotary Tiller / Center-Drive Rotary Tiller
Rotary Tiller

Center-Drive Rotary Tiller

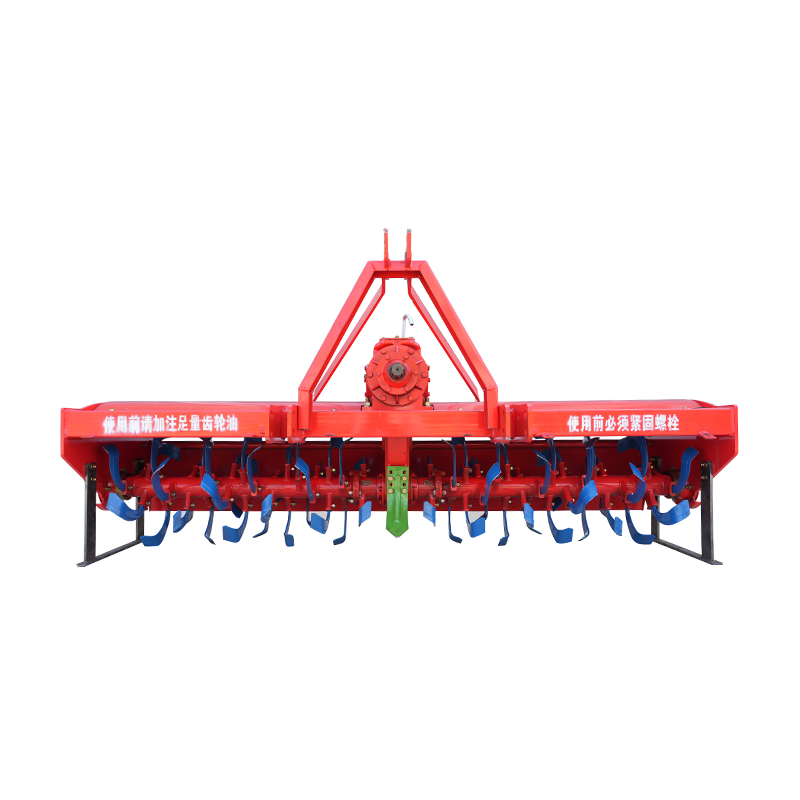

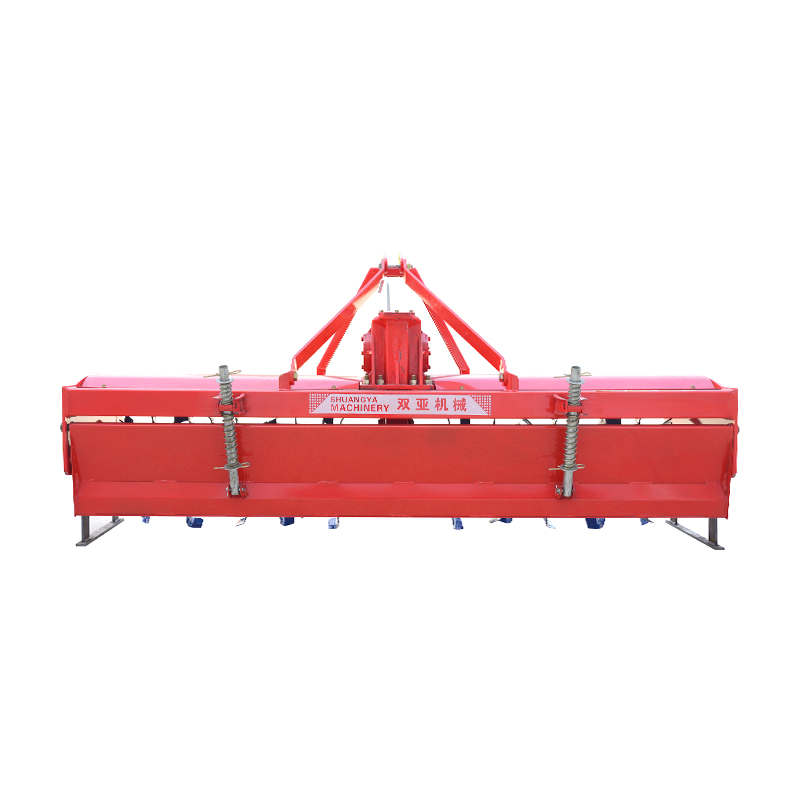

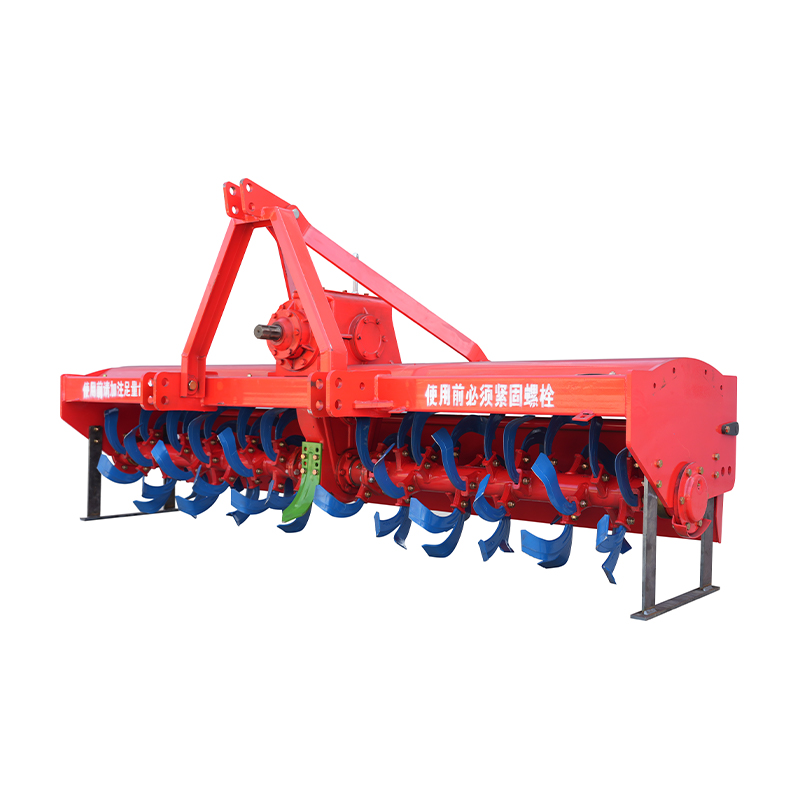

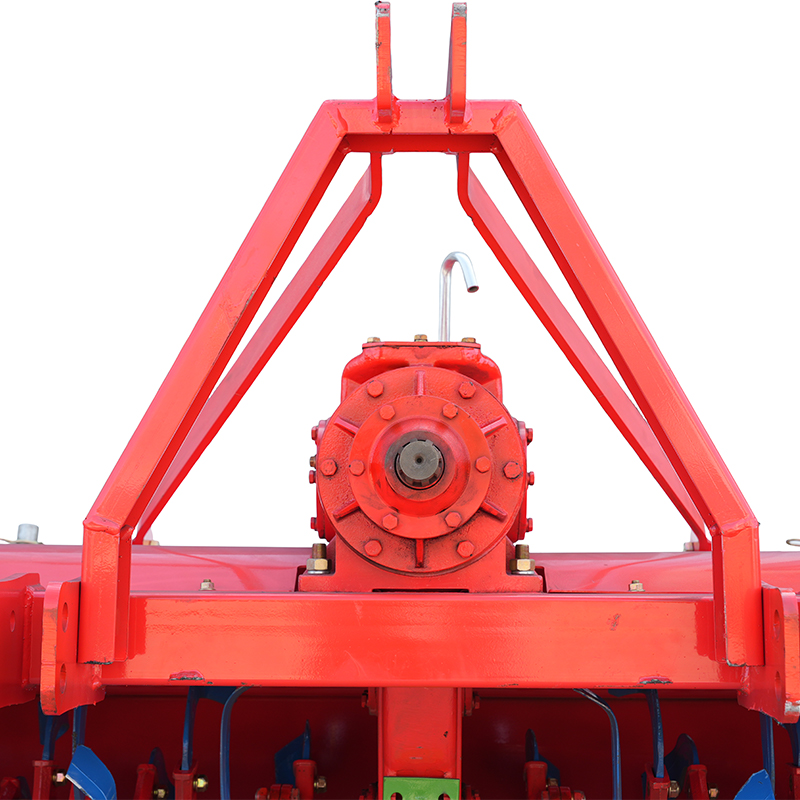

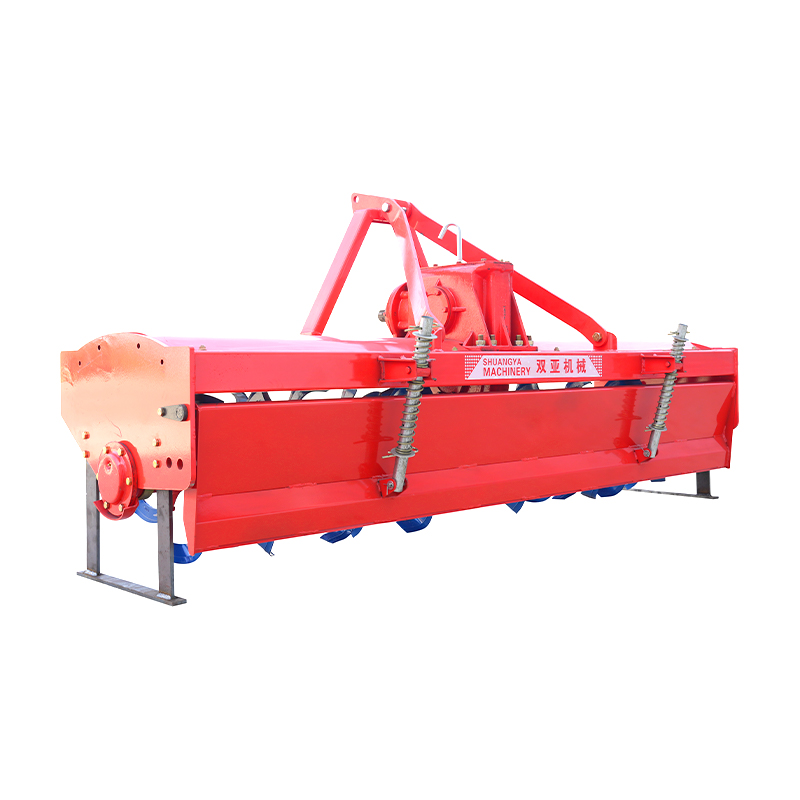

SUNYA Center-Drive Rotary Tiller is a tractor implement equipped with a three-point hitch and PTO drive. It features a central gearbox and split rotor shaft design, providing a compact structure, balanced load distribution and high rotor rigidity.

During operation, the rotating curved blades, combined with the forward movement of the tractor, cut, crush and loosen the soil. Its strong soil-pulverizing performance makes it suitable for both uncultivated and previously plowed fields, including wet and dry field land preparation.

With working widths of 200–300 cm, working depths of 8–18 cm, and tractor requirements of approximately 70–150+ HP, it is well suited for primary and secondary tillage in vegetable fields, orchards and large open fields.

PREV: No previous article
NEXT: Full-Width Rotary Tiller
  • Center-Drive Rotary Tiller
  • Center-Drive Rotary Tiller
  • Center-Drive Rotary Tiller
  • Center-Drive Rotary Tiller
  • Working Width (cm)
    200-300
  • Working Depth (cm)
    8-18
  • Power required KW
    52-112
  • Power required HP
    70-150
Parameters
Model
Working Width (cm)
Overall Dimensions (cm)
Working Depth (cm)
Matching Horsepower
Number of Blades
1GKN-200
200
93×226×110
8-18
70-90
58
1GKN-230
230
97×250×106
8-18
90-100
64
1GKN-250
250
97×270×106
8-18
120-130
66
1GKN-280
280
97×290×106
8-18
140-150
84
1GKN-300
300
97×320×106
8-18
Above 150
88

Special Contents
  • By adjusting the size of the body, it can be fitted to tractors of the appropriate horsepower.

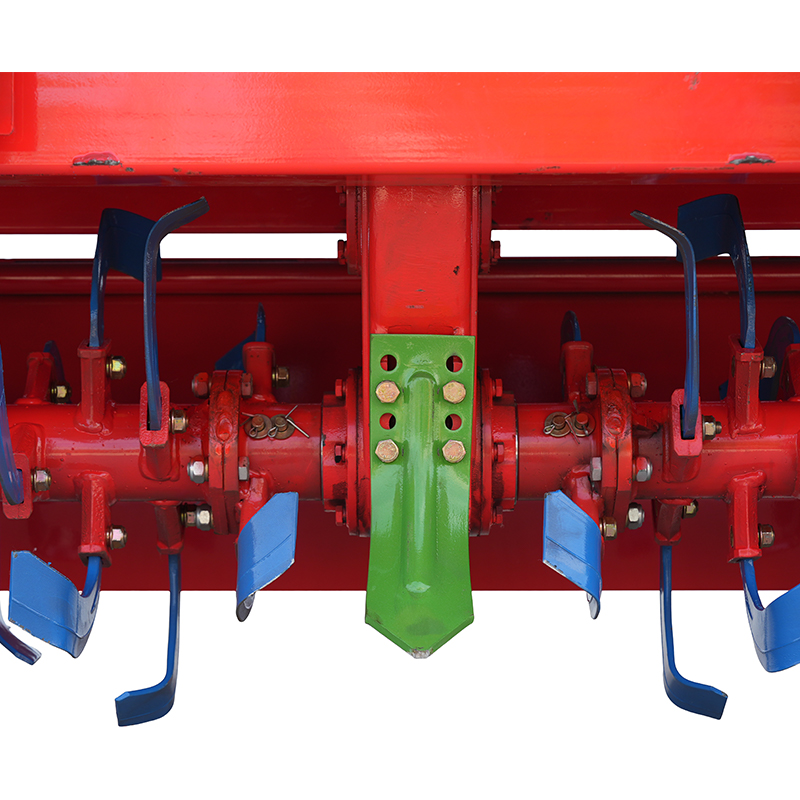

  • The centre section features a plough-body design, which effectively improves the quality of work in the central area, whilst the half-shaft structure enhances the rigidity of the cutter shaft, making it less prone to deformation.

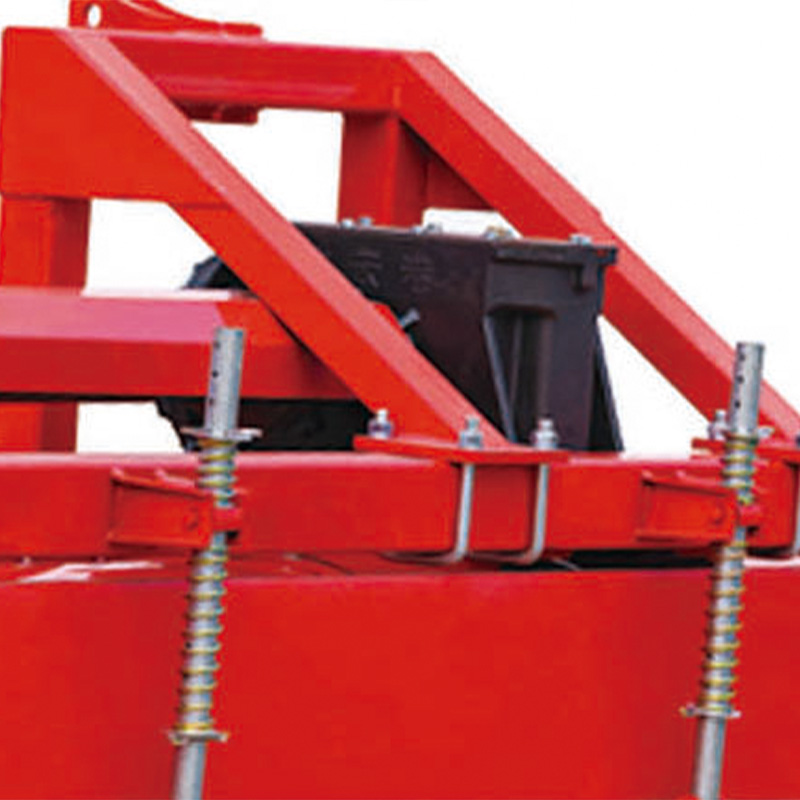

  • The frame-type gantry design is more robust and durable, and is a common configuration for high-horsepower rotary tillers.
