Full-Width Rotary Tiller
Contact Us
Home / Products / Rotary Tiller / Full-Width Rotary Tiller
Rotary Tiller

Full-Width Rotary Tiller

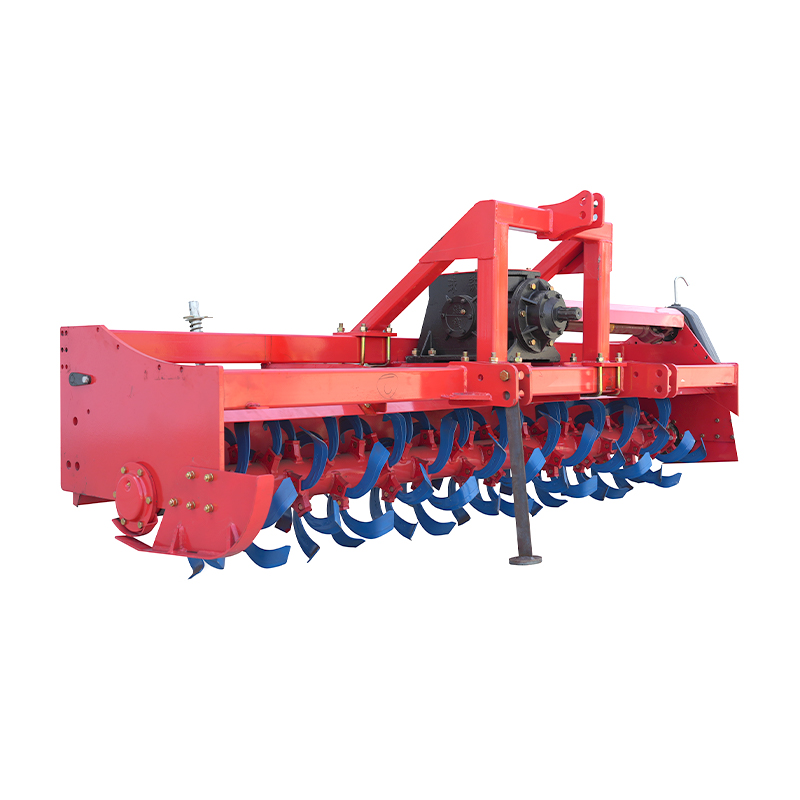

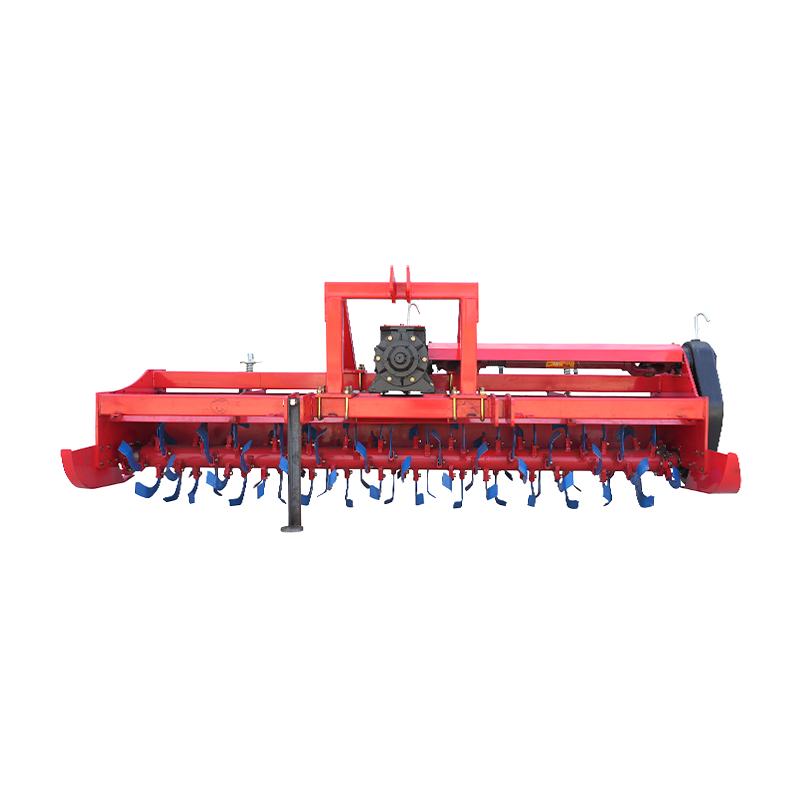

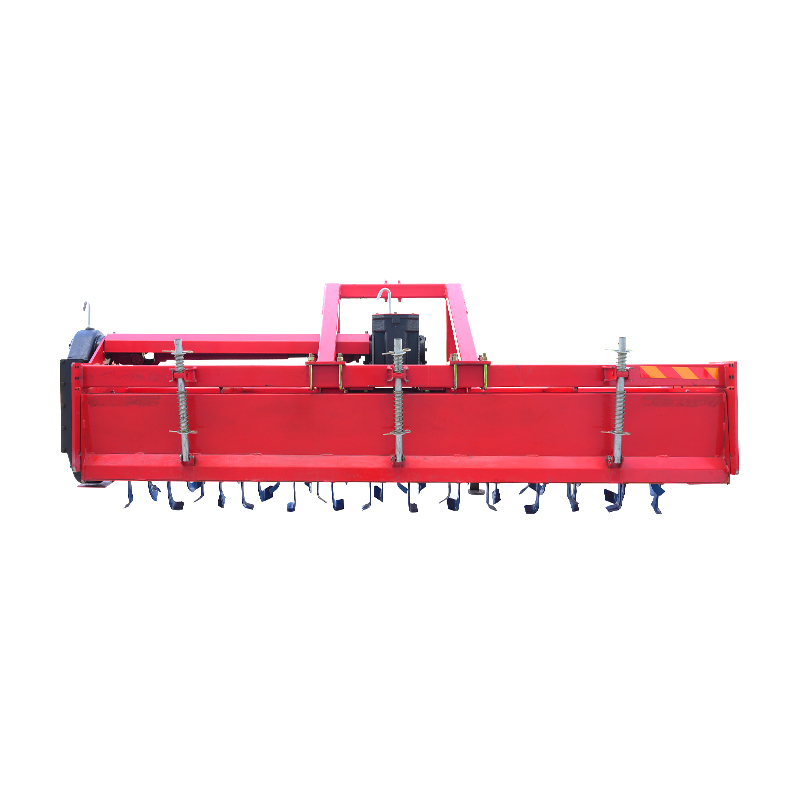

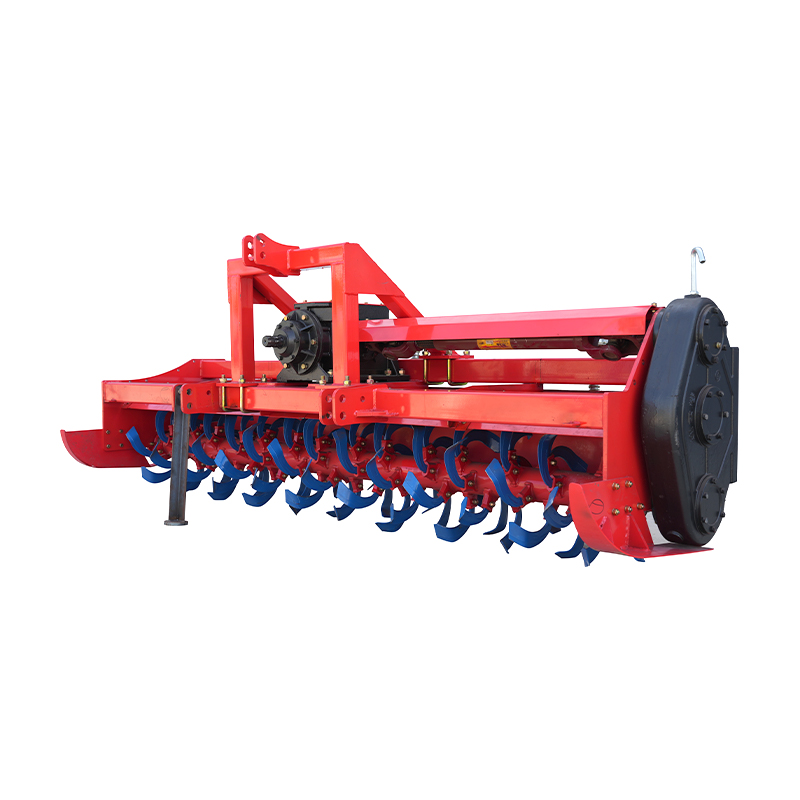

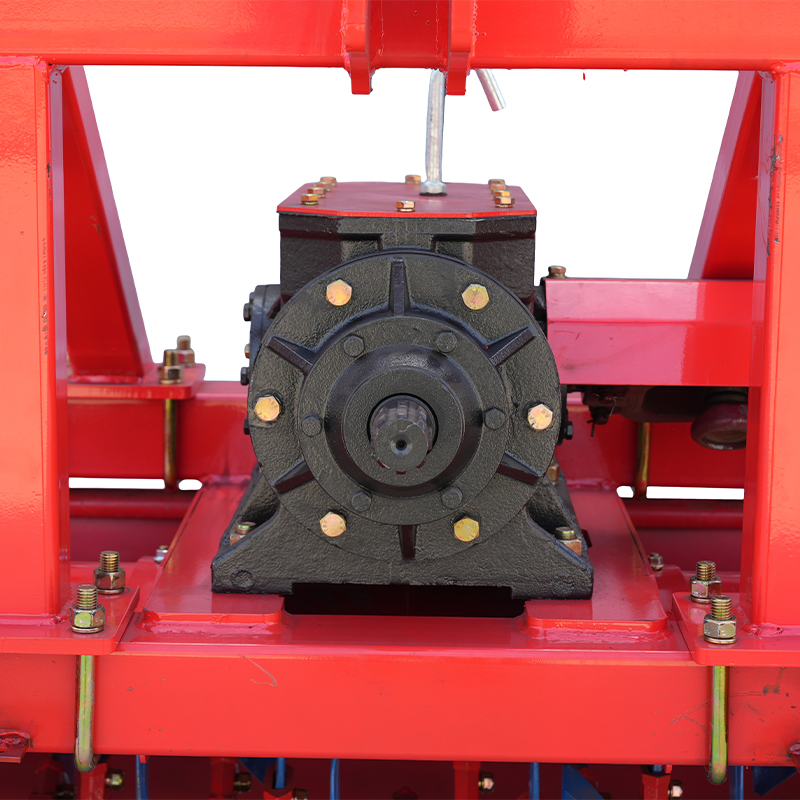

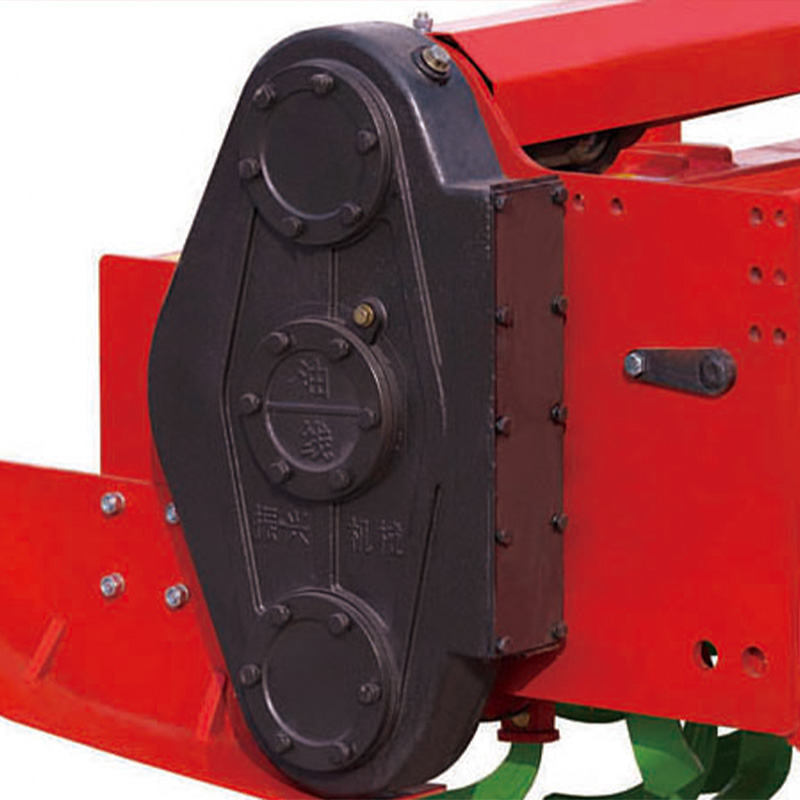

SUNYA Full-Width Rotary Tiller is a tractor-mounted tillage implement equipped with a three-point hitch and PTO drive. It features a one-piece continuous rotor shaft and is available with flat-beam or raised-beam structures. The raised-beam version uses a curved hood to reduce soil accumulation and clogging, helping lower power consumption during operation.

As the tractor moves forward, the rotating blades cut, crush and mix the soil across the working width, providing effective soil pulverization and land preparation. It is suitable for both dry and wet field tillage, as well as shallow cultivation of saline-alkali soils, stubble and weed control, green manure incorporation, and vegetable field preparation.

With working widths of 200–300 cm, working depths of 8–18 cm, and tractor requirements of approximately 70–150+ HP, it is suitable for a wide range of agricultural tillage operations.

PREV: Center-Drive Rotary Tiller
NEXT: No next article
  • Full-Width Rotary Tiller
  • Full-Width Rotary Tiller
  • Full-Width Rotary Tiller
  • Full-Width Rotary Tiller
  • Working Width (cm)
    200-300
  • Working Depth (cm)
    8-18
  • Power required KW
    52-112
  • Power required HP
    70-150
Parameters
Model
Working Width (cm)
Overall Dimensions (cm)
Working Depth (cm)
Matching Power (HP)
Number of Blades
1GK-200
200
105×240×110
8-18
70-90
64
1GK-230
230
105×270×110
8-18
90-100
73
1GK-250
250
105×290×110
8-18
120-130
79
1GK-280
280
105×320×110
8-18
140-150
84
1GK-300
300
105×340×110
8-18
Above 150
92

Special Contents

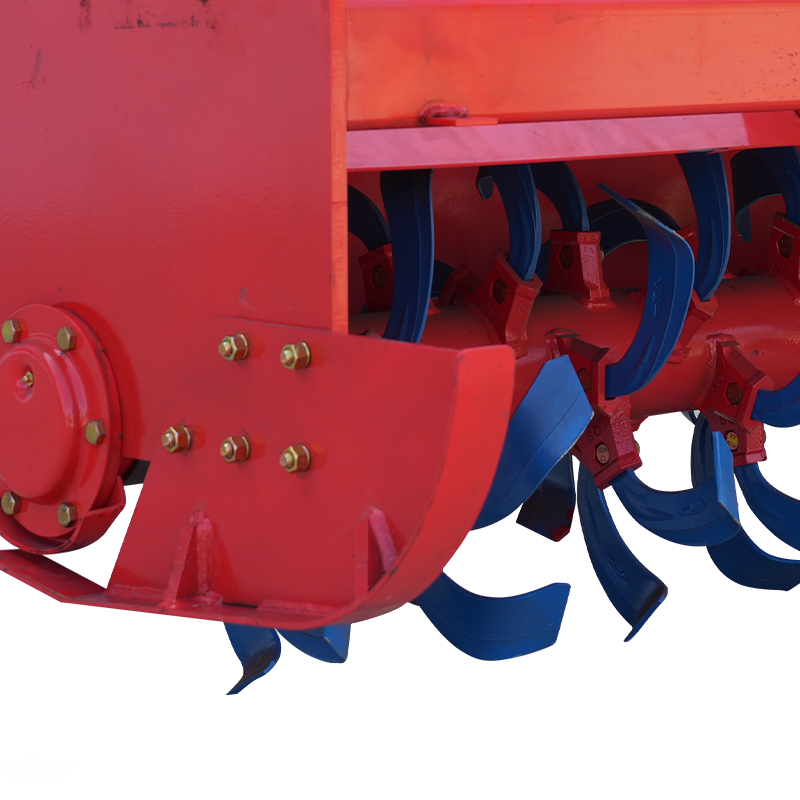

  • Integrated anti-wear plate, preventing the build-up of weeds during cultivation.

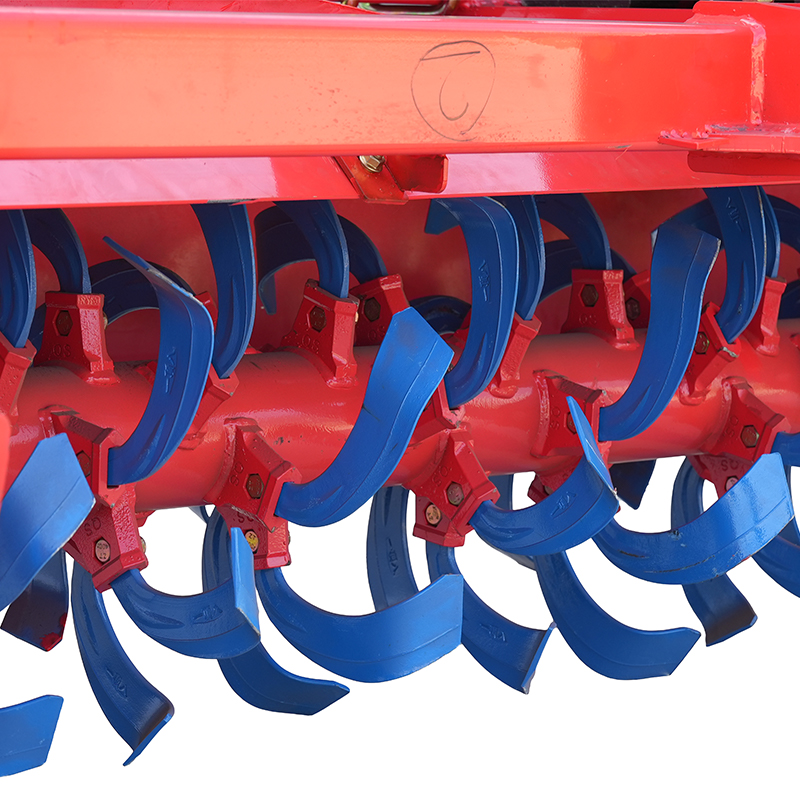

  • Integrated cutter shaft for improved soil breaking and levelling.
  • By adjusting the size of the box, match it with a tractor of corresponding horsepower.
  • By adjusting the size of the body, it can be fitted to tractors of the appropriate horsepower.
