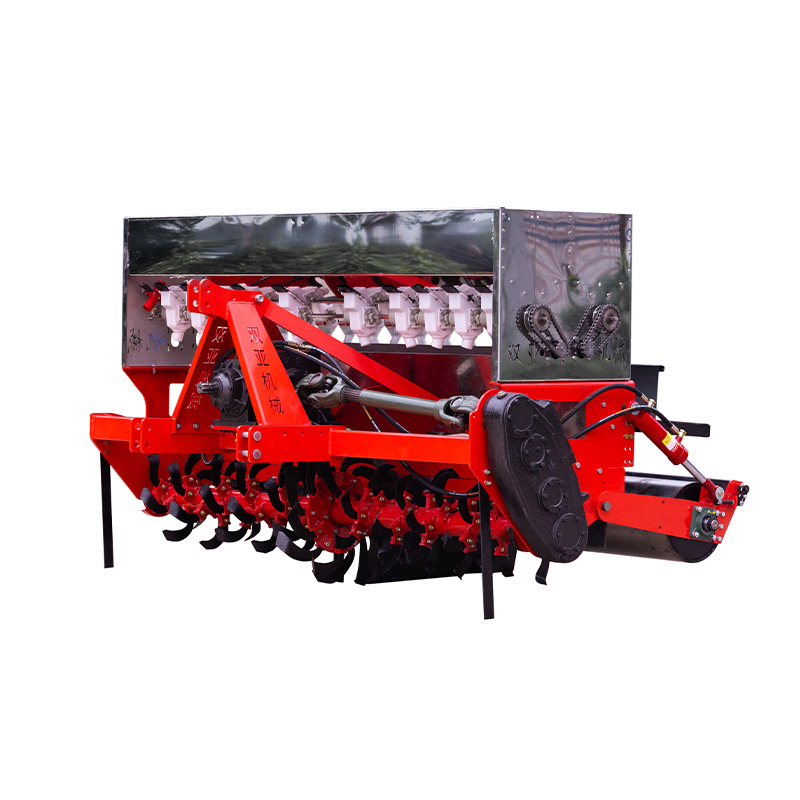

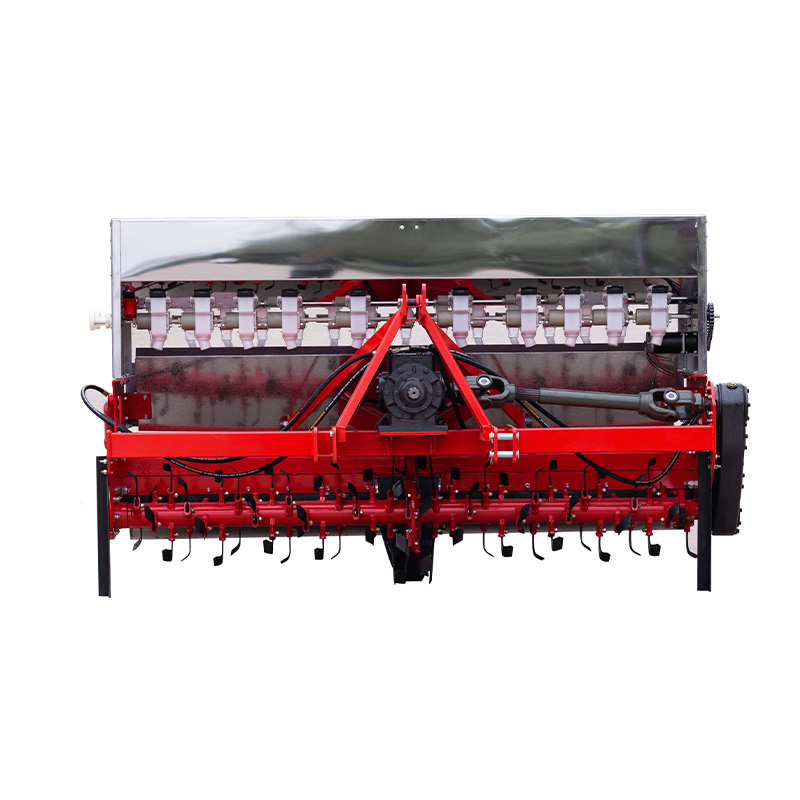

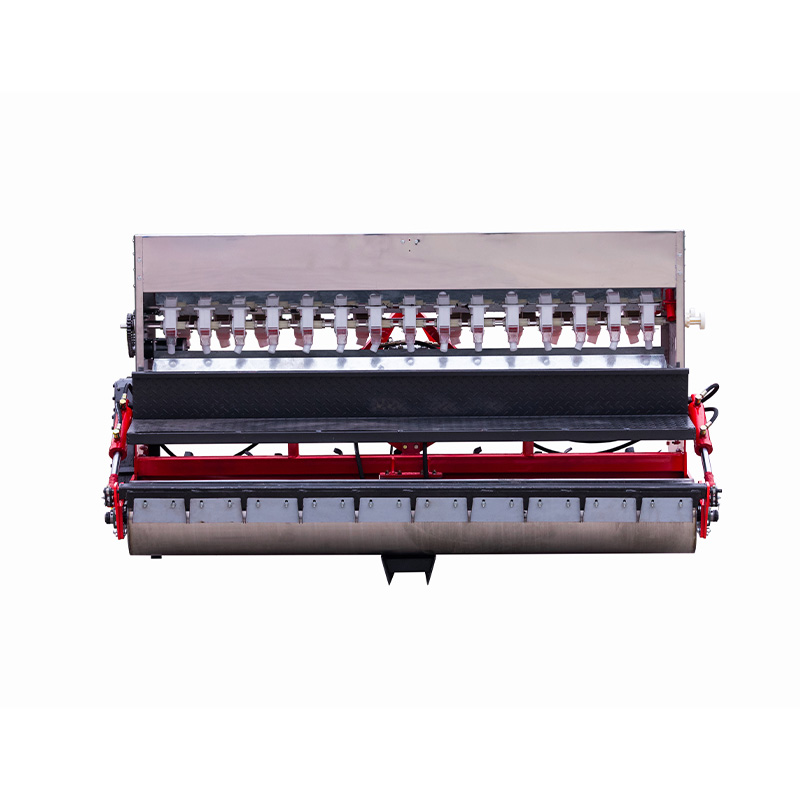

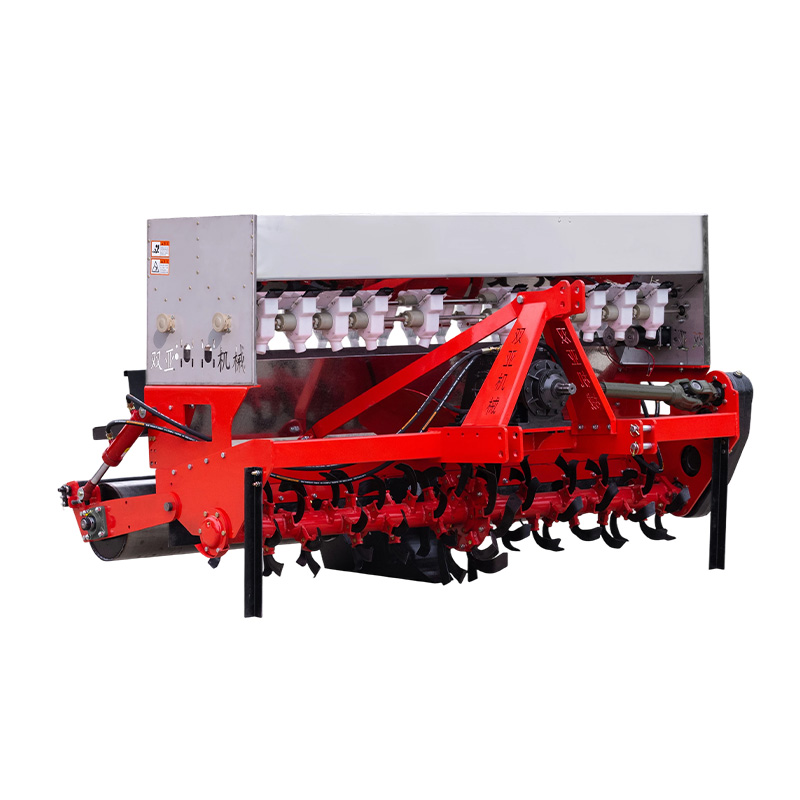

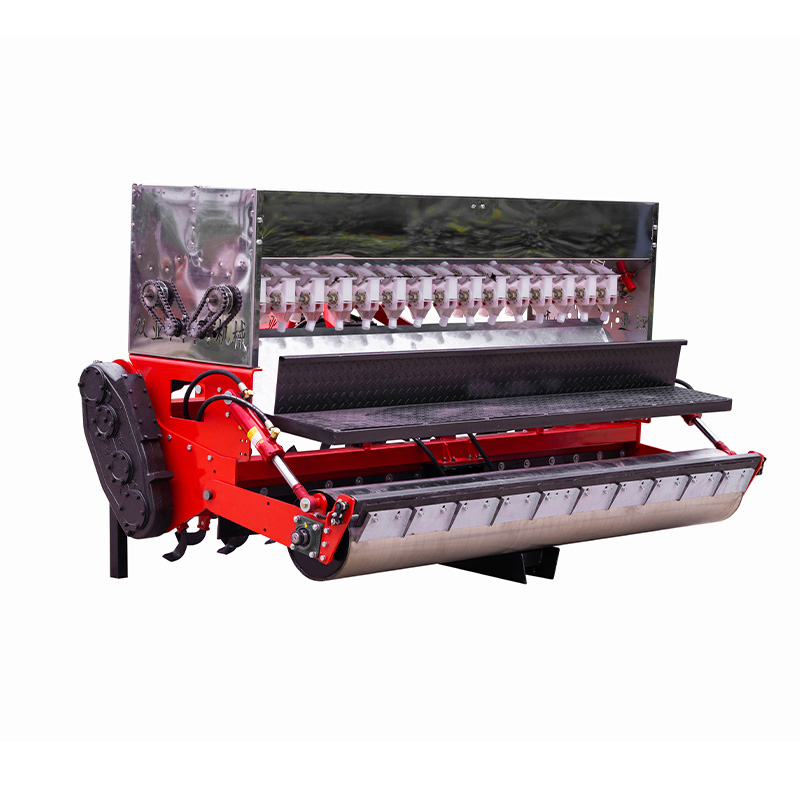

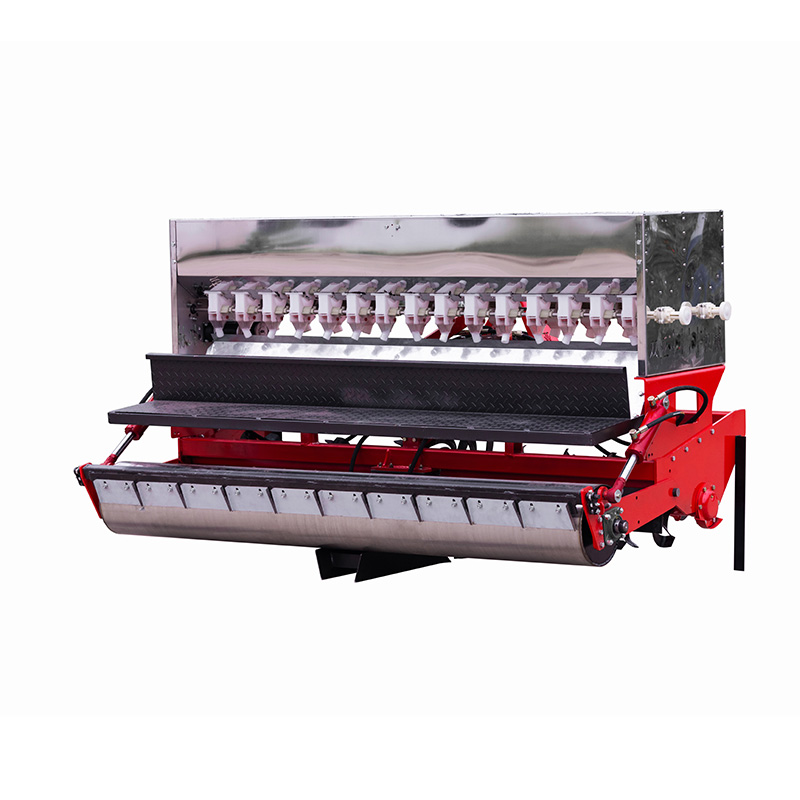

Combined Ditching, Fertilizing And Seeding Machine

The multi-functional trenching, fertilizing, and seeding machine is highly efficient, capable of completing multiple processes in a single pass, including side cutting, separation, trenching, soil breaking, fertilizing, seeding, covering, compacting, and ridging. This significantly reduces the number of operations and improves production efficiency.  It provides excellent seedbed conditions; some models feature disc-type furrow openers that separate straw and roots onto the back of the ridge, allowing seeds to be placed in finely tilled, clean soil. The compaction and moisture retention effects are good, resulting in a high germination rate and strong, healthy seedlings.  Power consumption is low, as the area of soil disturbed during operation is small, generally less than 40%, reducing power consumption by 20% compared to other machines.  Furthermore, it does not damage the soil structure and helps conserve water and maintain soil moisture.

  • Combined Ditching, Fertilizing And Seeding Machine
  • Combined Ditching, Fertilizing And Seeding Machine
  • Combined Ditching, Fertilizing And Seeding Machine
  • Combined Ditching, Fertilizing And Seeding Machine
  • Combined Ditching, Fertilizing And Seeding Machine
  • Combined Ditching, Fertilizing And Seeding Machine
  • Working Width (cm)
    200-300
  • Working Depth (cm)
    10-20
  • Power required KW
    52-104
  • Power required HP
    70-140
Parameters
Model
Working Width (cm)
Overall Dimensions (cm)
Trenching Depth (cm)
Matching Horsepower
Number of Blades
12KG-200
200
162 × 240 × 162
10–20
70–90
48 + 12 + 4
12KG-230
230
162 × 270 × 162
10–20
80–100
56 + 12 + 4
12KG-250
250
162 × 290 × 162
10–20
90–120
60 + 12 + 4
12KG-280
280
166 × 320 × 162
10–20
110–140
68 + 12 + 4
12KG-300
300
166 × 340 × 162
10–20
Above 140
72 + 12 + 4

Special Contents

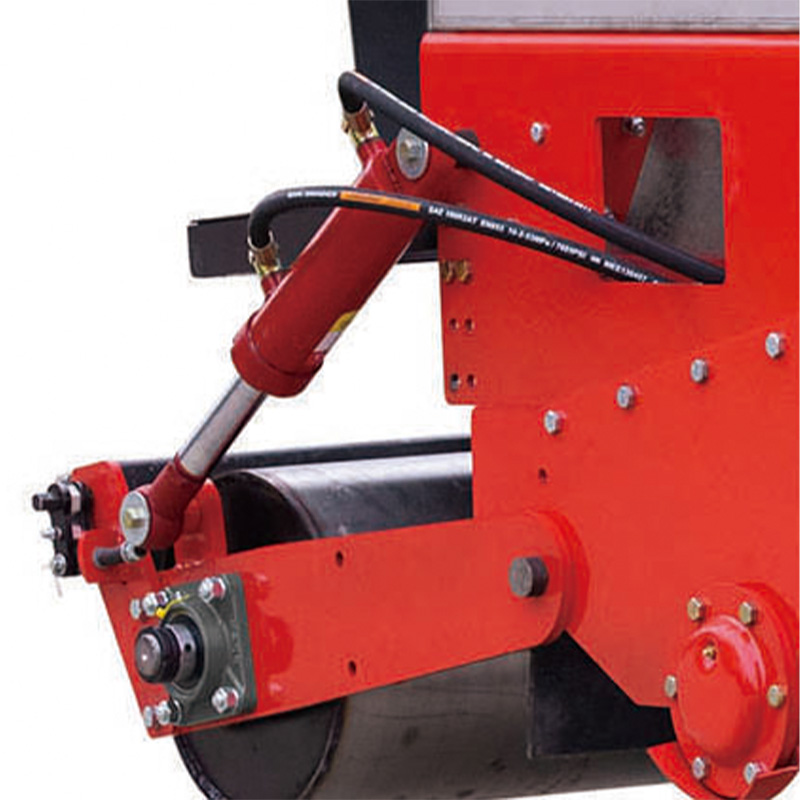

  • Hydraulically adjustable stainless steel ground wheels allow compaction force to be adjusted as needed.

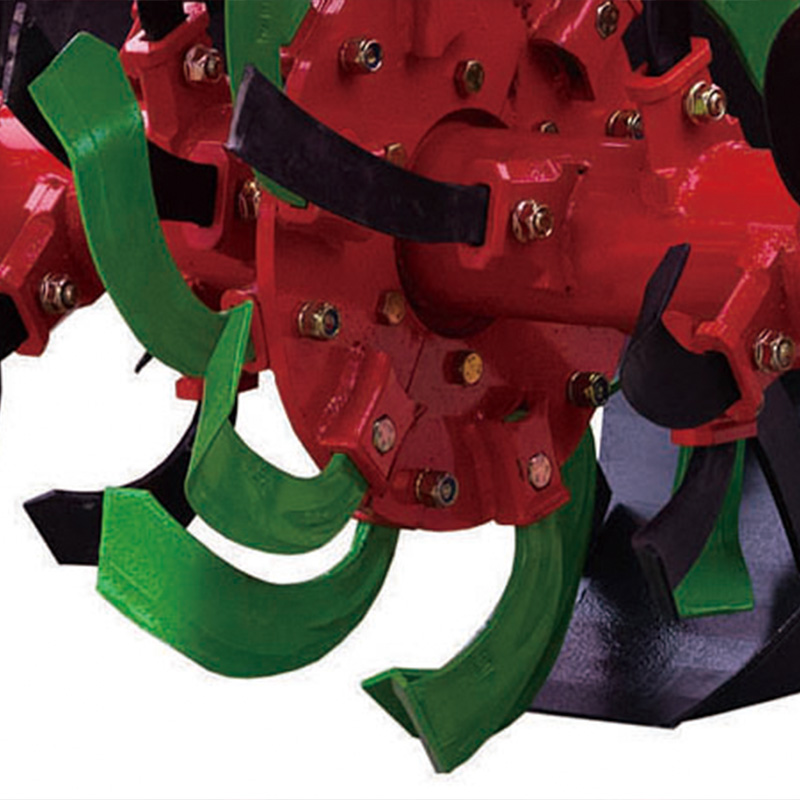

  • The soil-turning blade distributes soil evenly and achieves excellent soil distribution results.
  • Trenching component with smooth trench edges for effective trench cleaning.
