1LYQ Power-Driven Disc Plow
Contact Us
Home / Products / Power-Driven Disc Plow / 1LYQ Power-Driven Disc Plow
Power-Driven Disc Plow

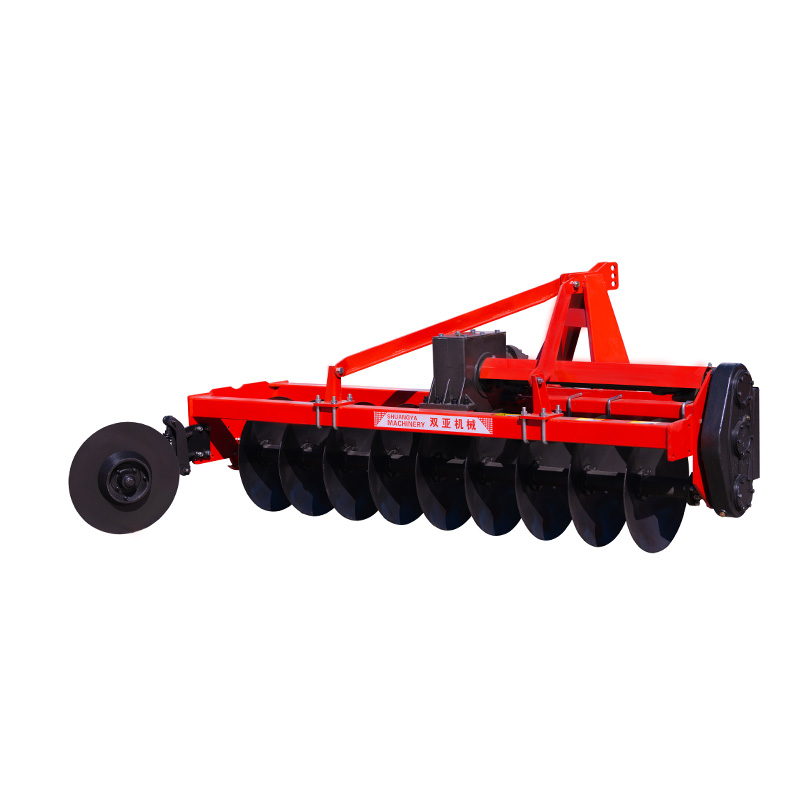

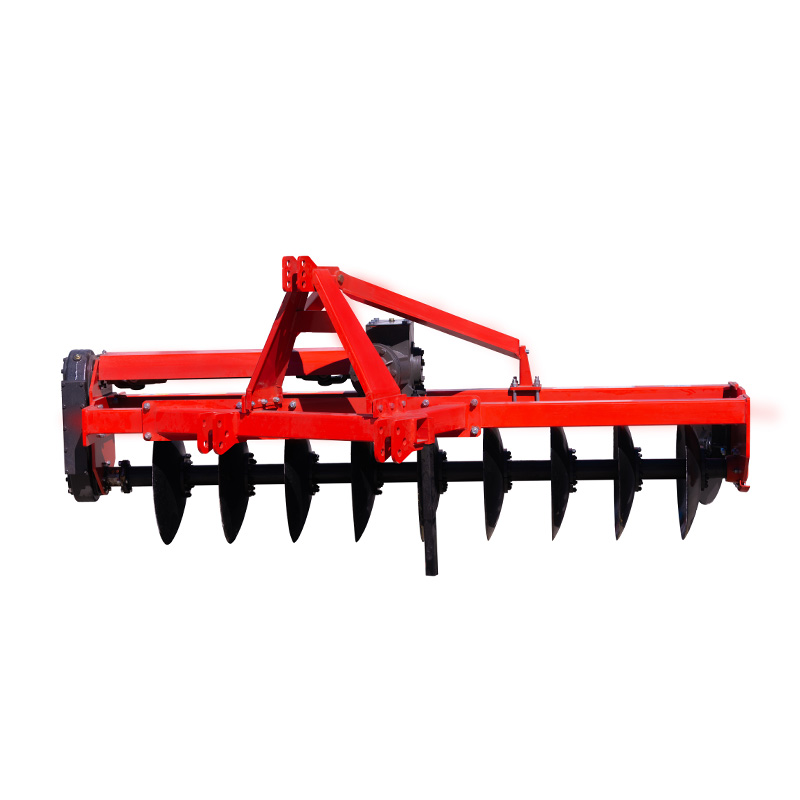

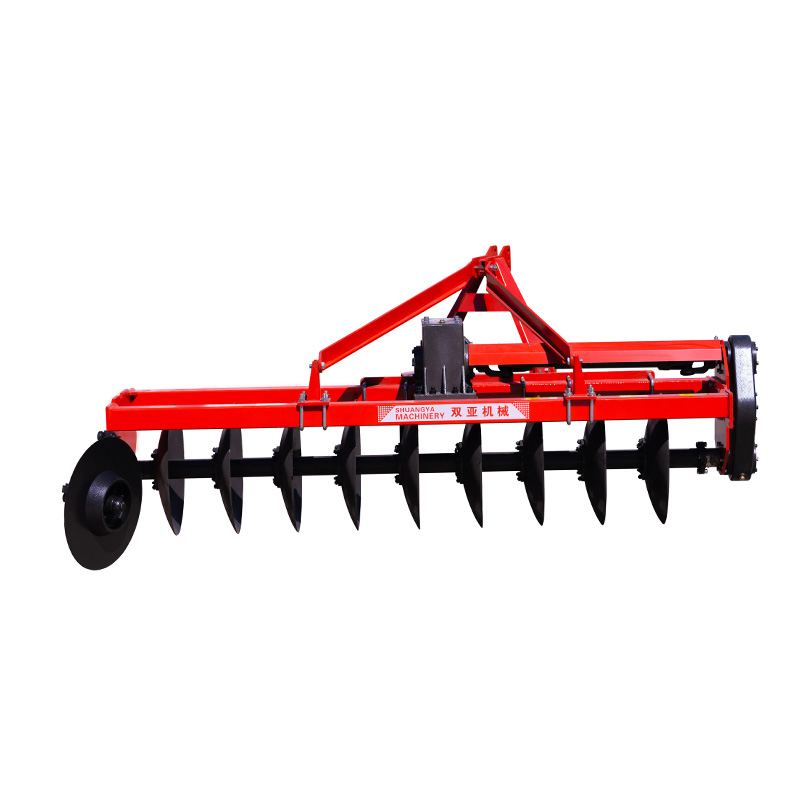

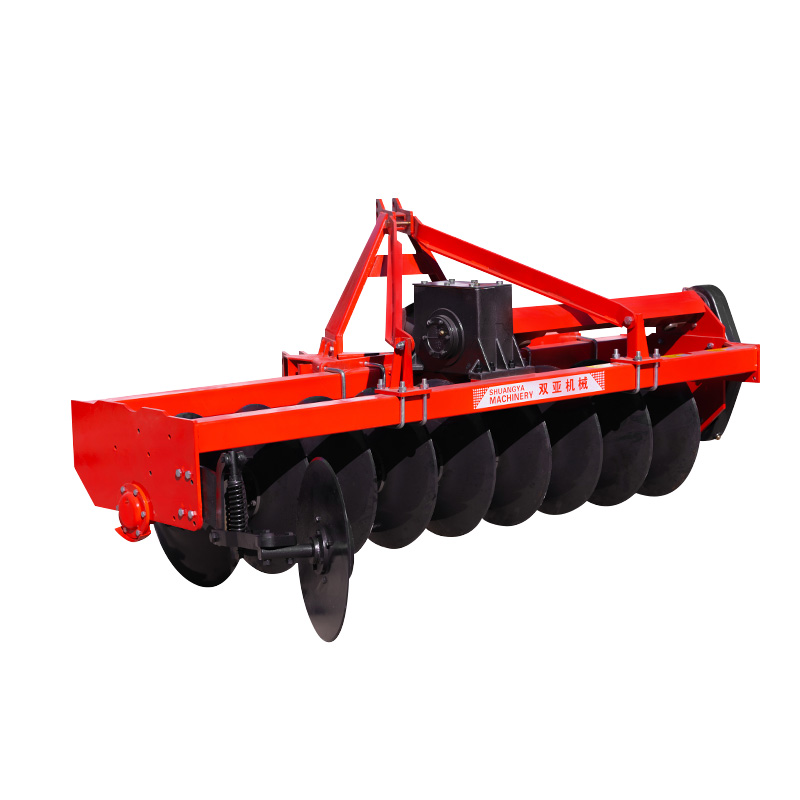

1LYQ Power-Driven Disc Plow

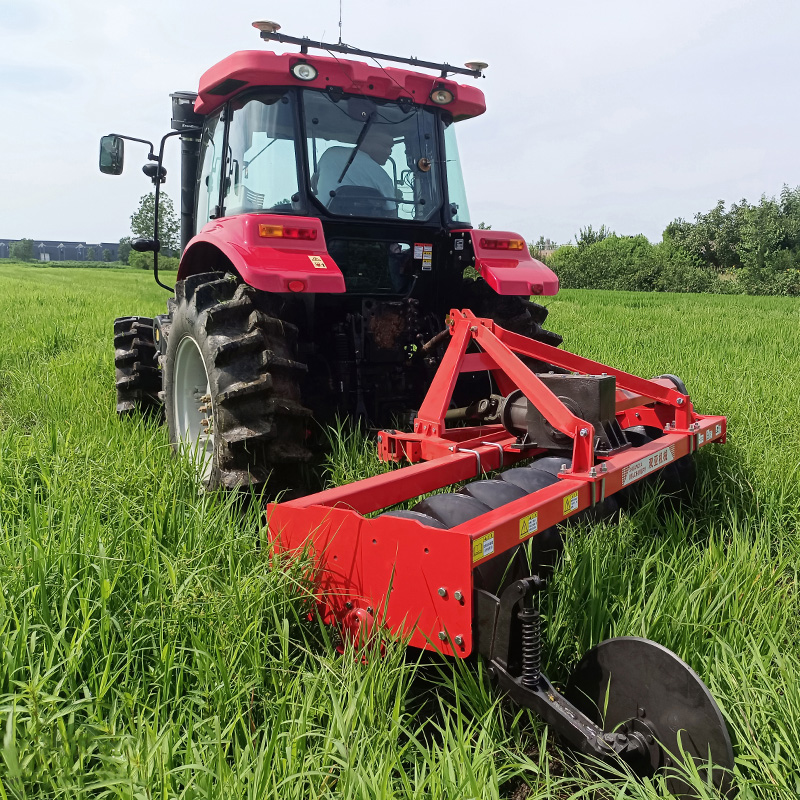

The core of the driven disc plow uses the tractor's power take-off (PTO) shaft to drive the disc assembly at high speed, combining with forward traction to achieve soil cutting, crushing, turning, and stubble removal in a single pass.  Compared to traditional passive disc plows, its working efficiency is increased by more than 40%, making it particularly suitable for deep plowing in heavy clay soils, compacted land, and areas covered with crop residue. It is a core tillage equipment for large-scale farms and high-standard farmland construction.

PREV: No previous article
NEXT: No next article
  • 1LYQ Power-Driven Disc Plow
  • 1LYQ Power-Driven Disc Plow
  • 1LYQ Power-Driven Disc Plow
  • 1LYQ Power-Driven Disc Plow
  • 1LYQ Power-Driven Disc Plow
  • Working Width (cm)
    350-590
  • Power required KW
    59-134
  • Power required HP
    80-180
Parameters
Model
Overall Dimension (cm)
Matching Horsepower
Number of Disc Plates (sets)
Working Width (cm)
Tilling Depth (cm) Ø610(mm)
Tilling Depth (cm) Ø660(mm)
Transmission Mode
6-disc
151×212×125
80-90
6
164
15-20
20-25
Single-side gear drive
7-disc
151×240×125
90-120
7
192
15-20
20-25
Single-side gear drive
8-disc
151×283×125
120-140
8
220
15-20
20-25
Single-side gear drive
9-disc
151×296×125
140-160
9
248
15-20
20-25
Single-side gear drive
10-disc
151×324×125
160-180
10
276
15-20
20-25
Single/Double-side gear drive
12-disc
151×380×125
Above 180
12
332
15-20
20-25
Double-side gear drive

Special Contents

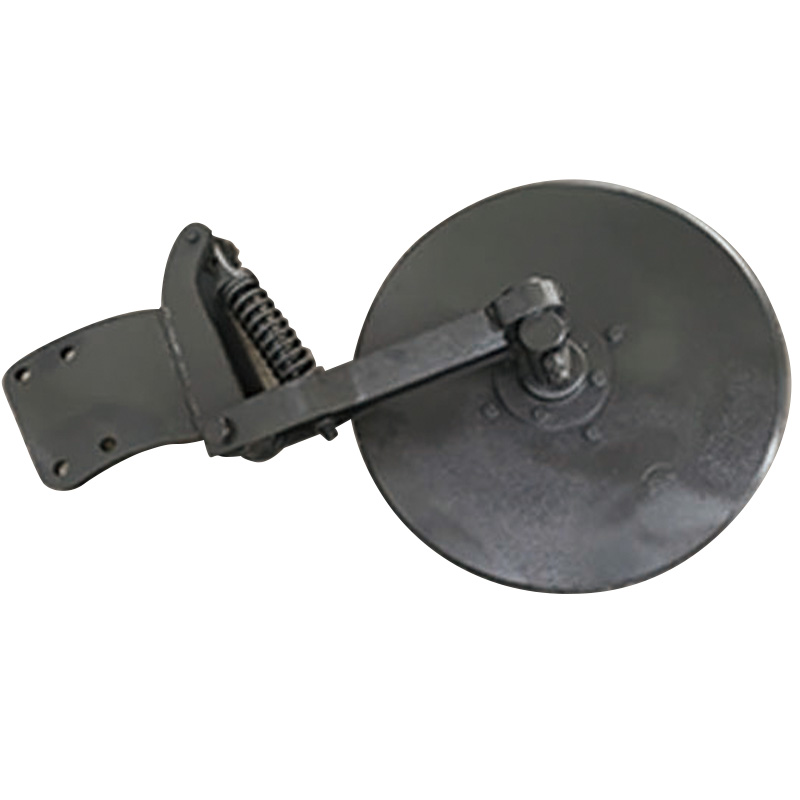

  • Manganese steel tail wheel, keeping the body balanced.

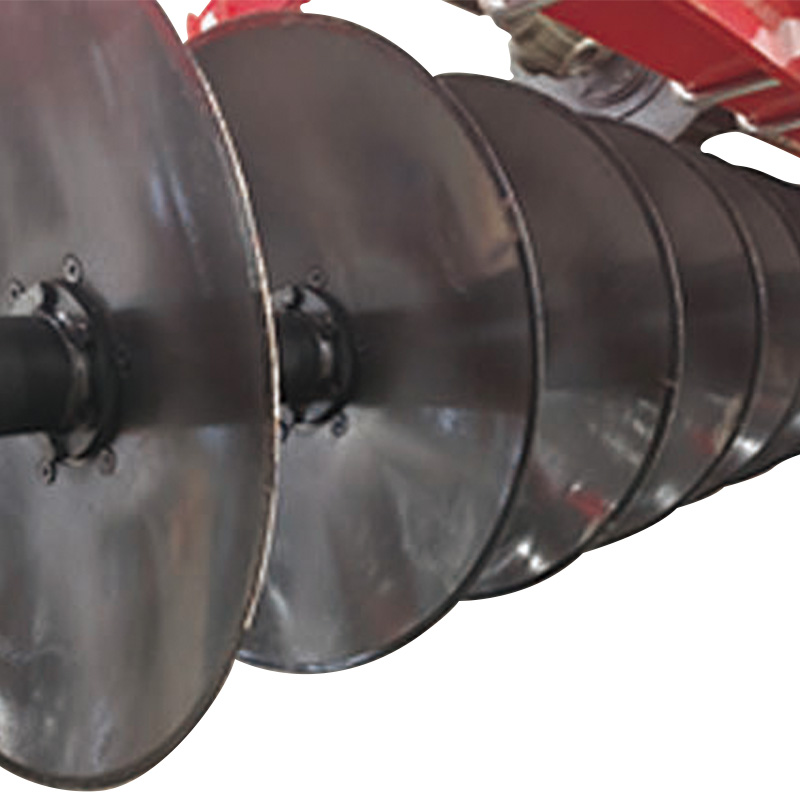

  • Manganese steel 610/660 rake blades are sturdy and wear-resistant, with a plowing depth of 15-25 cm.

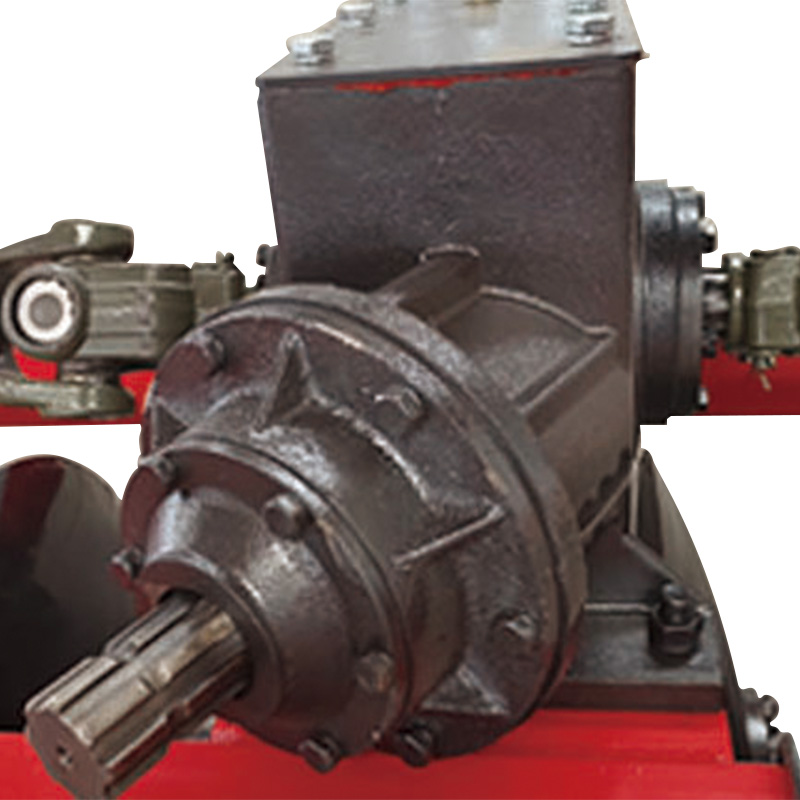

  • The dedicated offset housing enhances the durability of the drive shaft.

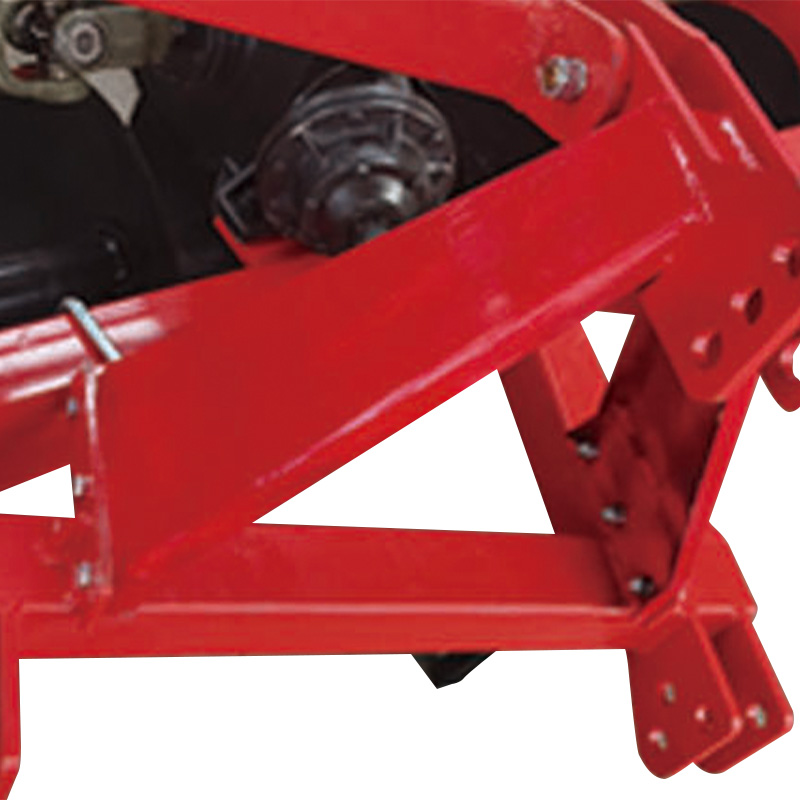

  • Reinforced frame gantry for enhanced durability,Resists heavy pressure without deformation.
