1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine

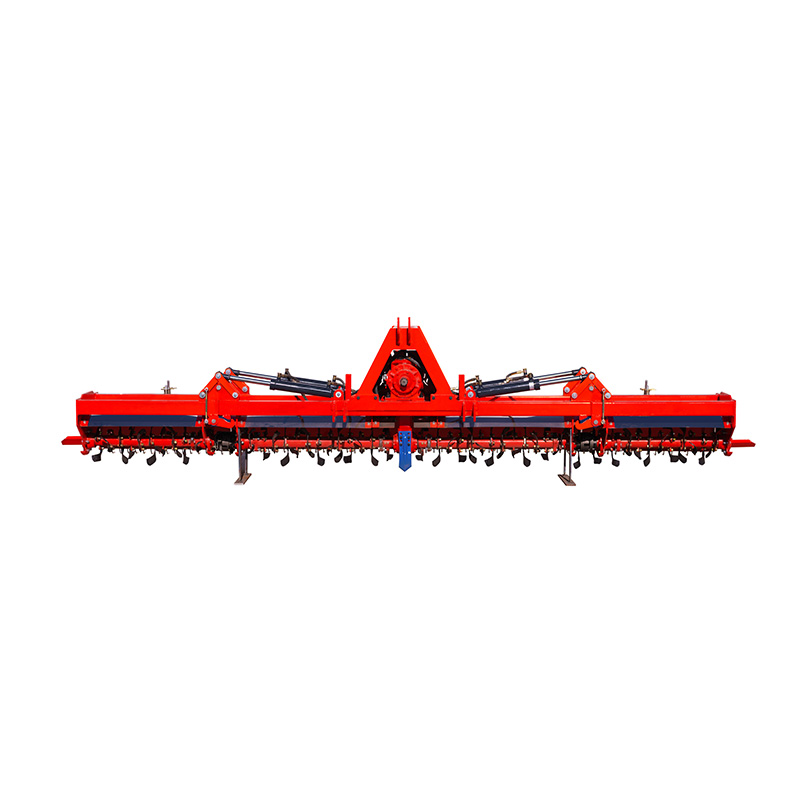

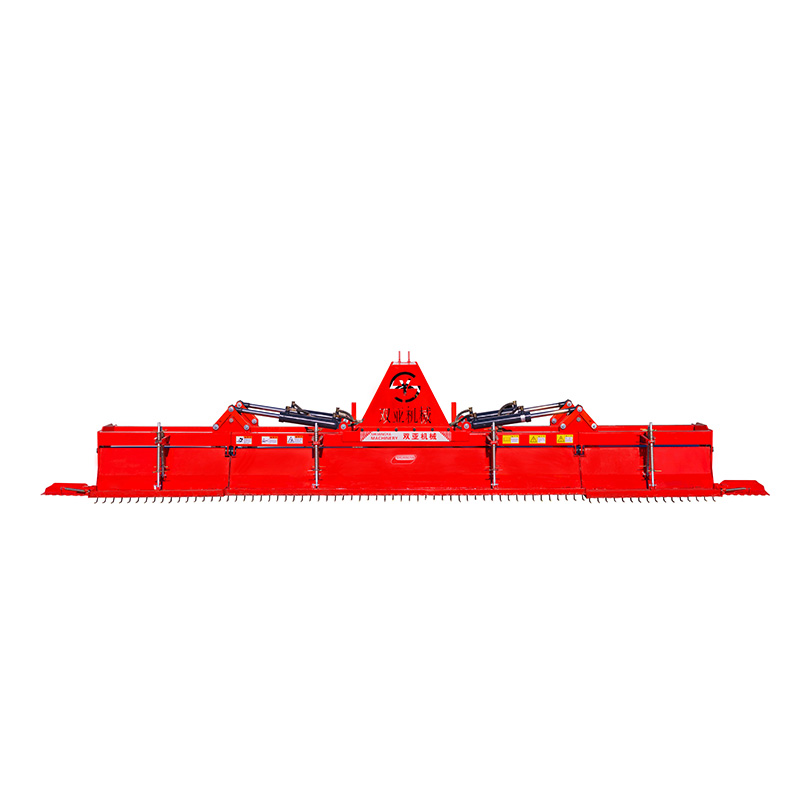

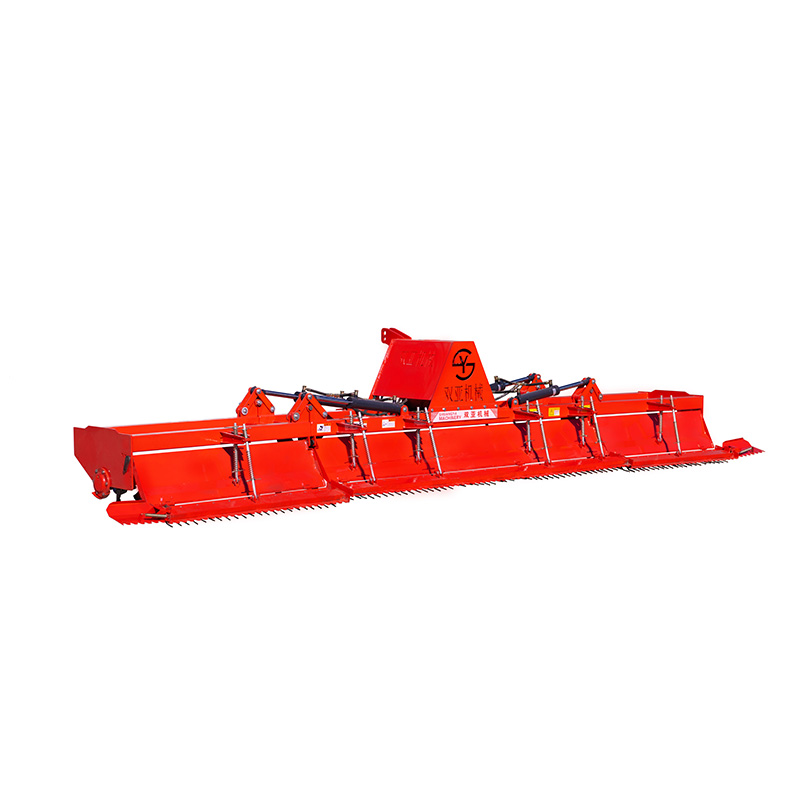

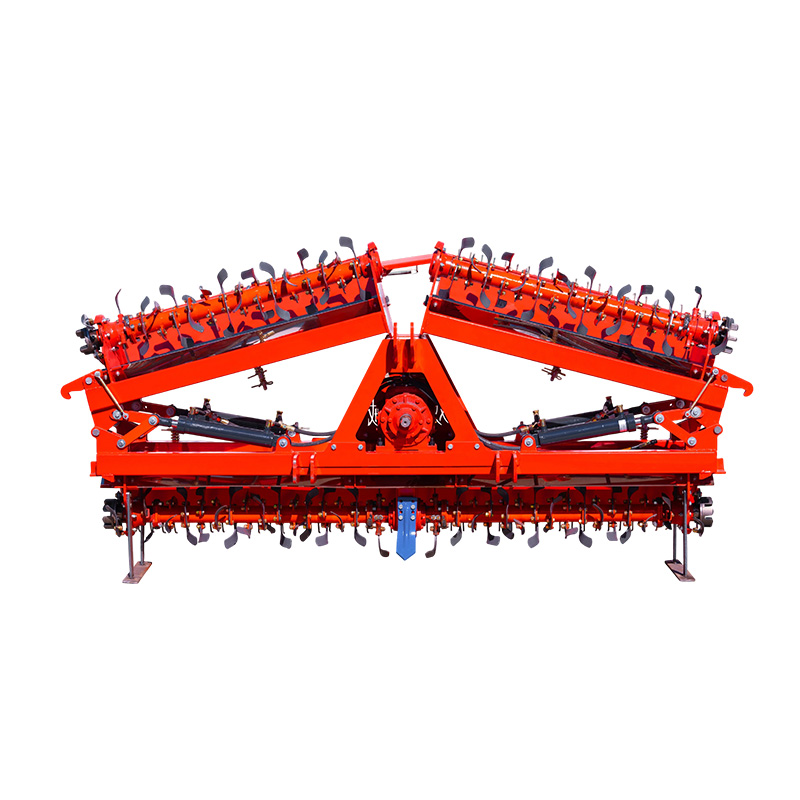

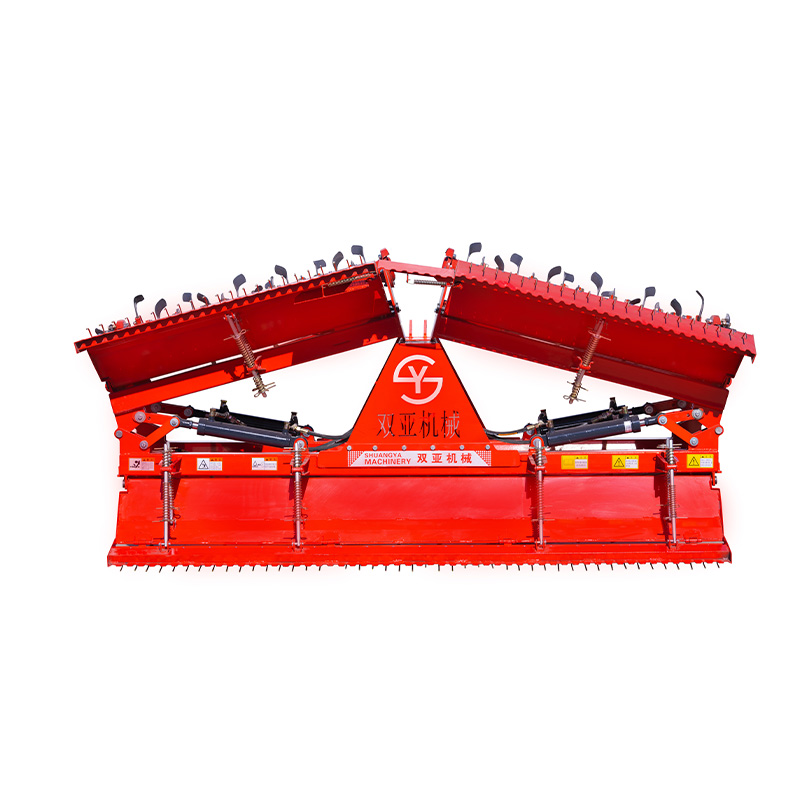

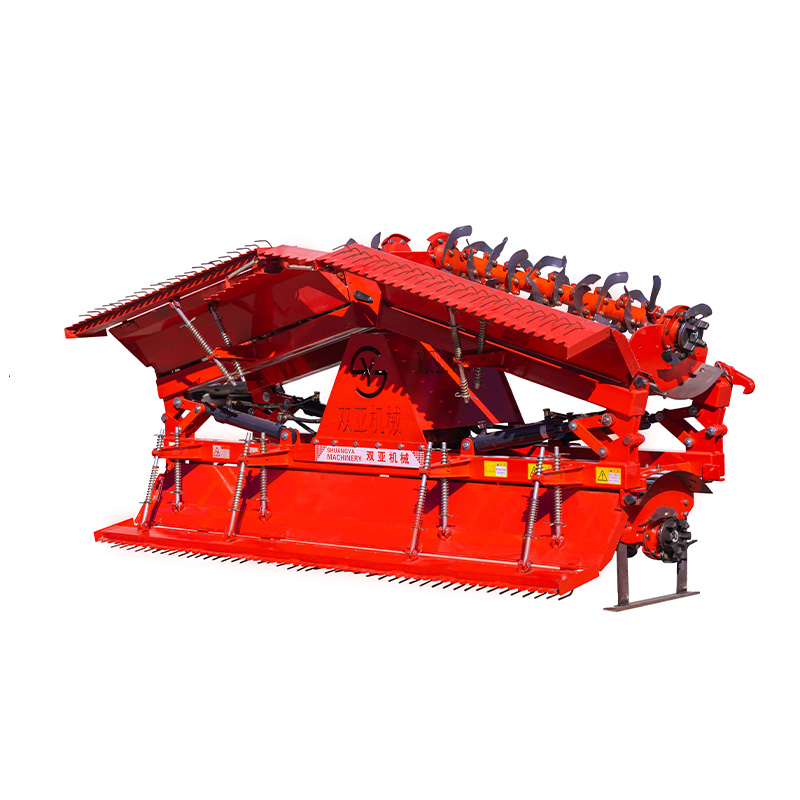

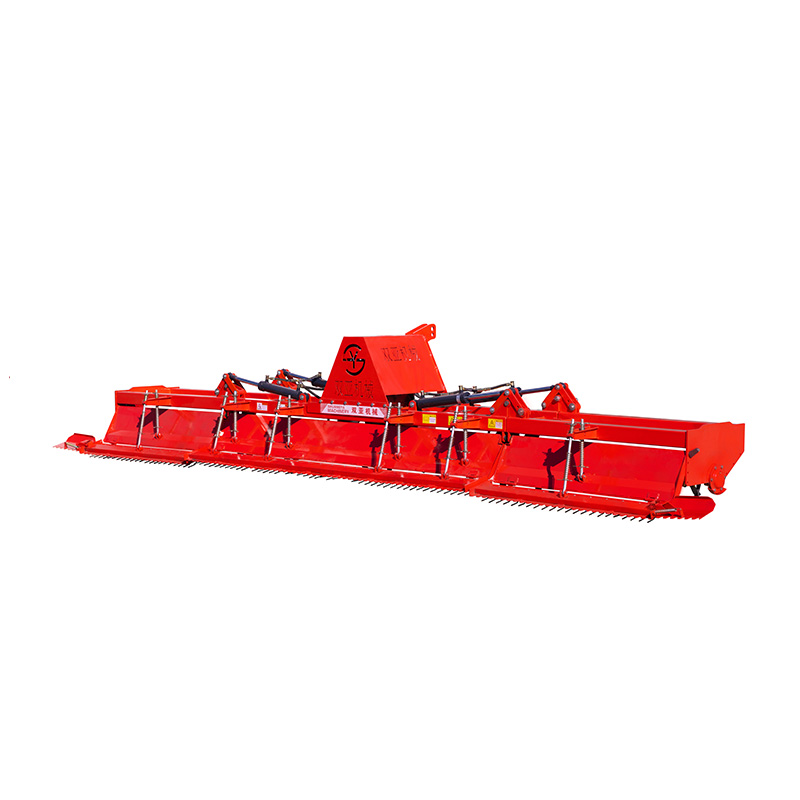

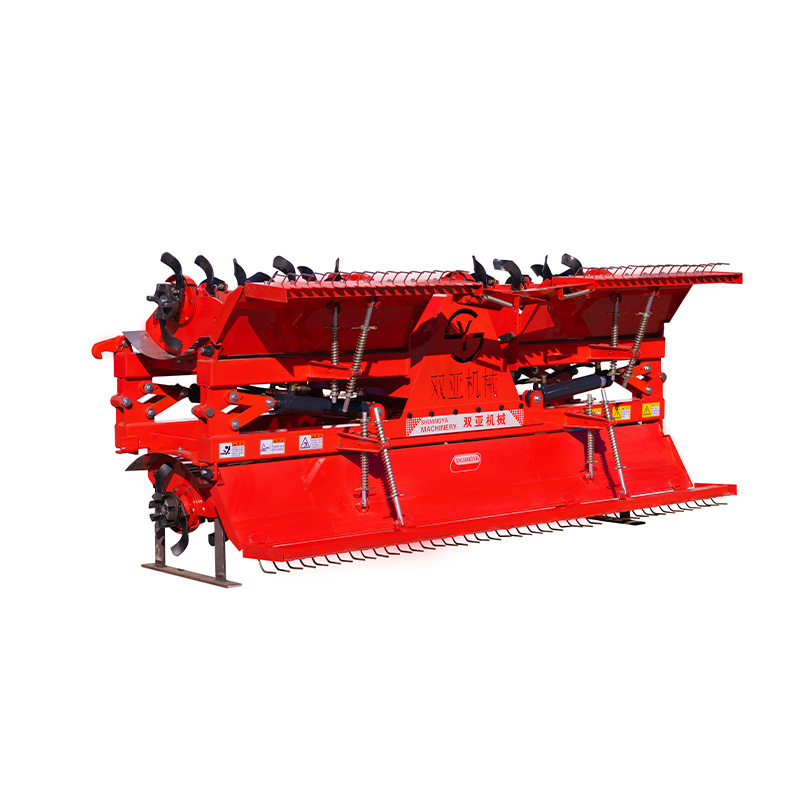

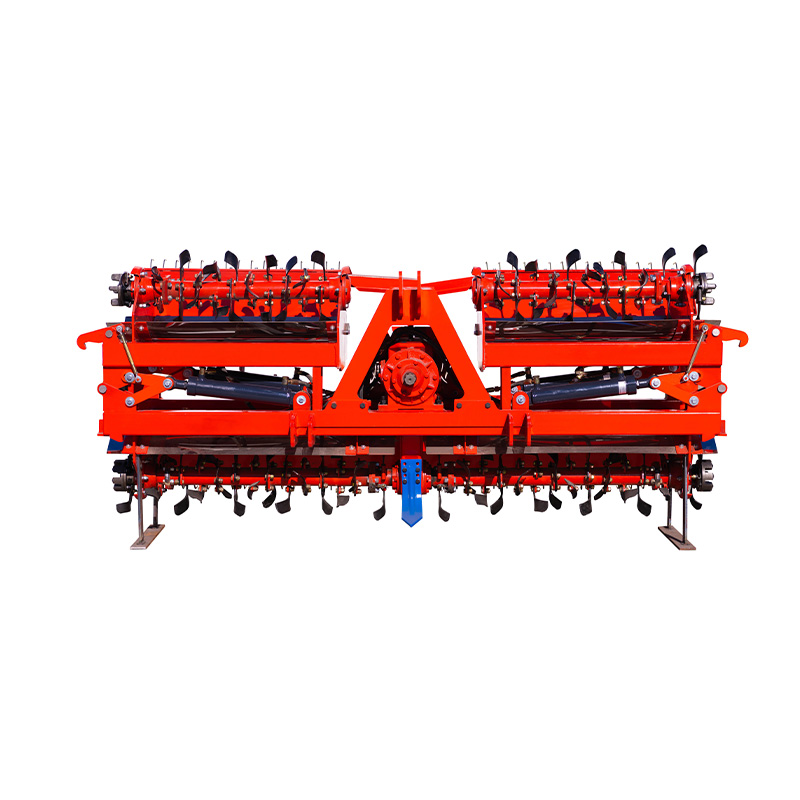

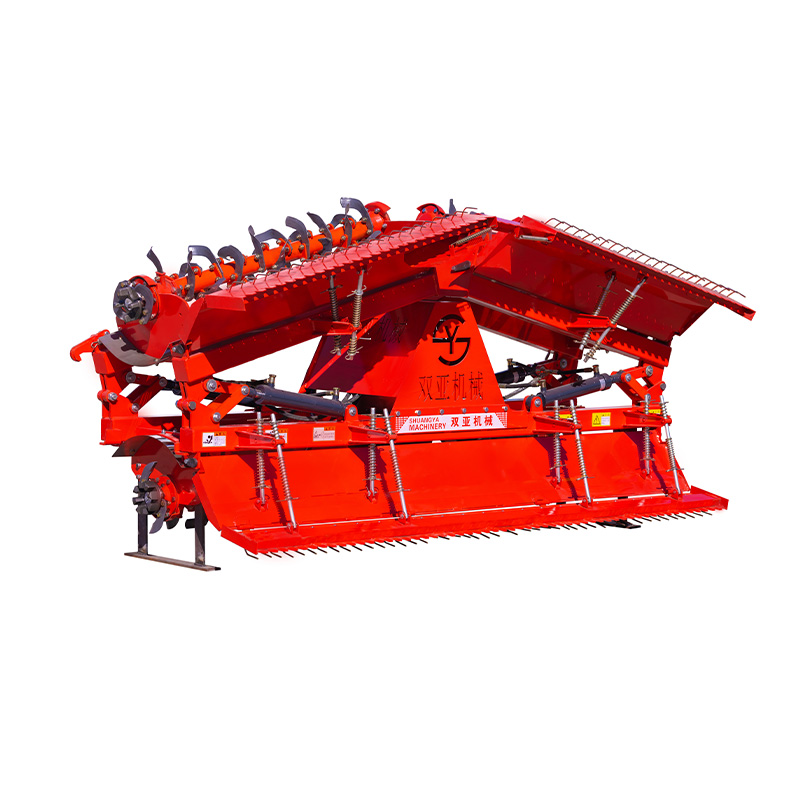

1GKNZ Three-section folding paddy field flattening, straw incorporation and puddling machine is a large-scale paddy field tillage machine designed for high-powered tractors.  Specifically designed for large-scale paddy field operations, it features a three-section hydraulic folding structure. This design retains the high efficiency of wide-width operation while solving the problems of oversized transport and inconvenient maneuvering associated with traditional wide-width rotary tillers. It is a core tillage and land preparation equipment for narrow-road paddy field areas and large-scale rice cultivation areas in southern China.

PREV: 1JS Two-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
NEXT: 1JSN Three-section folding non-powered paddy field stubble burying and leveling machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • 1GKNZ Three-Section Folding Paddy Field Flattening, Straw Incorporation And Puddling Machine
  • Working Width (cm)
    350-590
  • Power required HP
    67-164
  • Power required HP
    90-220
Parameters
Model
Overall Dimensions (cm)
Matching Power
Working Width (cm)
Machine Style
Number of Blades
1GKNZ-360
120×372×130
90-120
350
Hydraulic folding + mechanical lock
72
1GKNZ-400
120×412×130
90-120
390
Hydraulic folding + mechanical lock
84
1GKNZ-460
120×472×130
120-150
450
Hydraulic folding + mechanical lock
100
1GKNZ-500
120×120×130
140-160
490
Hydraulic folding + mechanical lock
116
1GKNZ-560
120×572×130
160-200
550
Hydraulic folding + mechanical lock
128
1GKNZ-600
120×612×130
Above 220
590
Hydraulic folding + mechanical lock
142

Special Contents

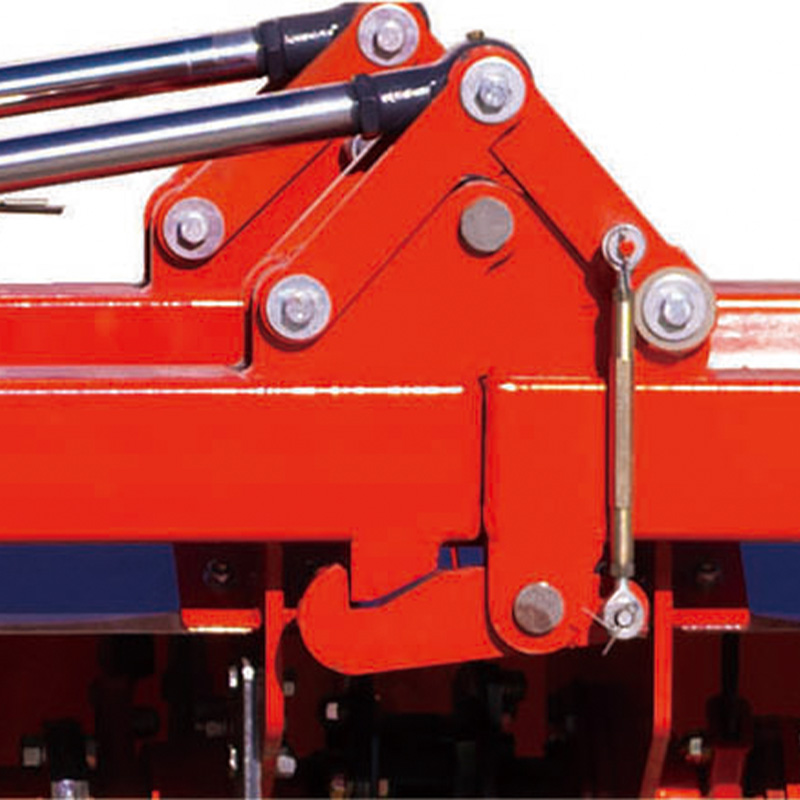

  • Mechanical lock connection at the folding point for easier operation.

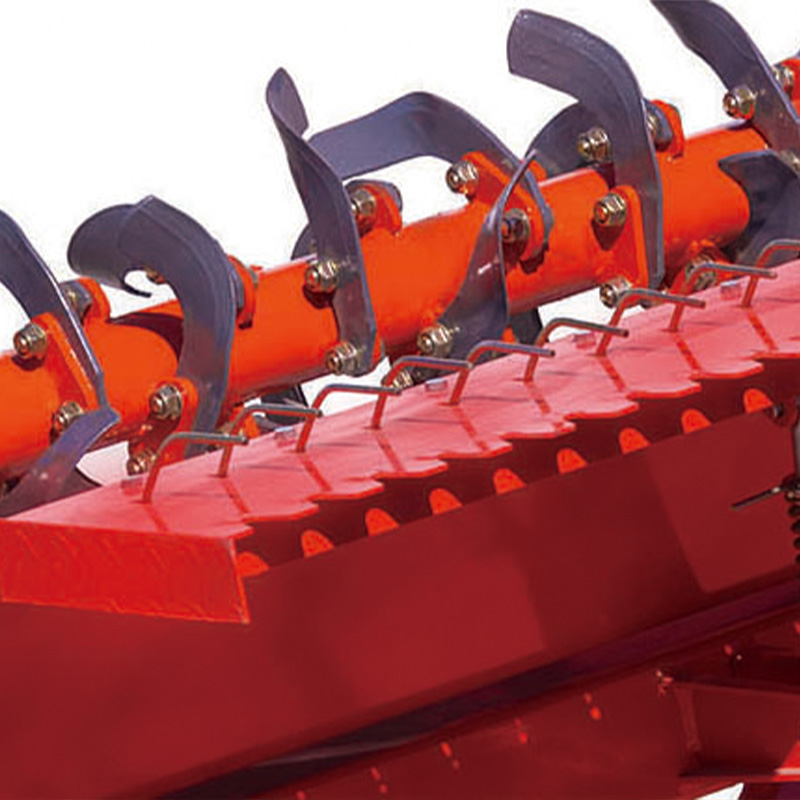

  • Double-hole screw scalpel, with the screw mounted in the opposite direction to the blade shaft, becoming tighter with use.

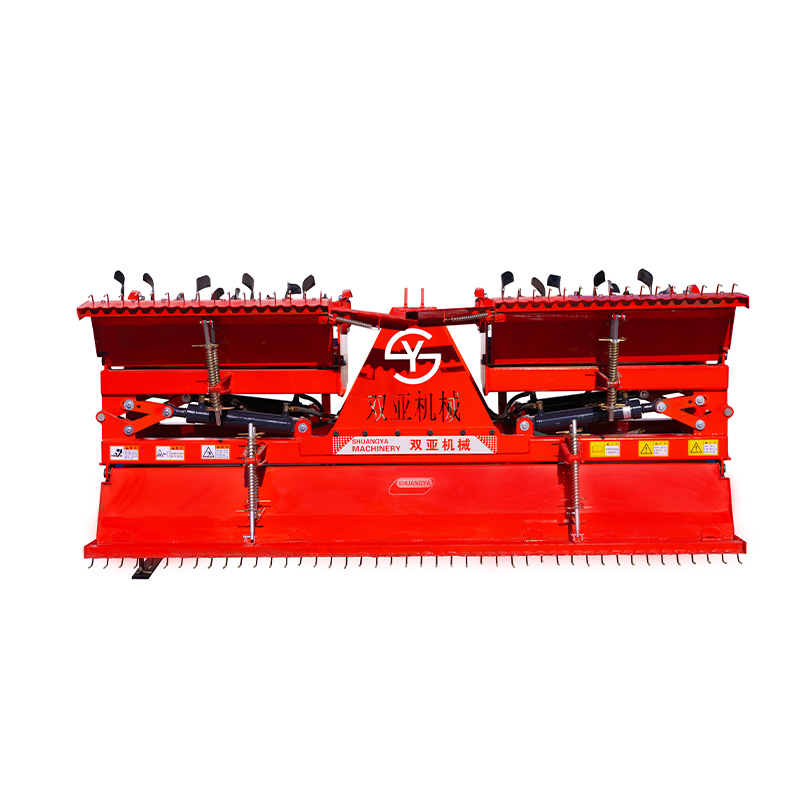

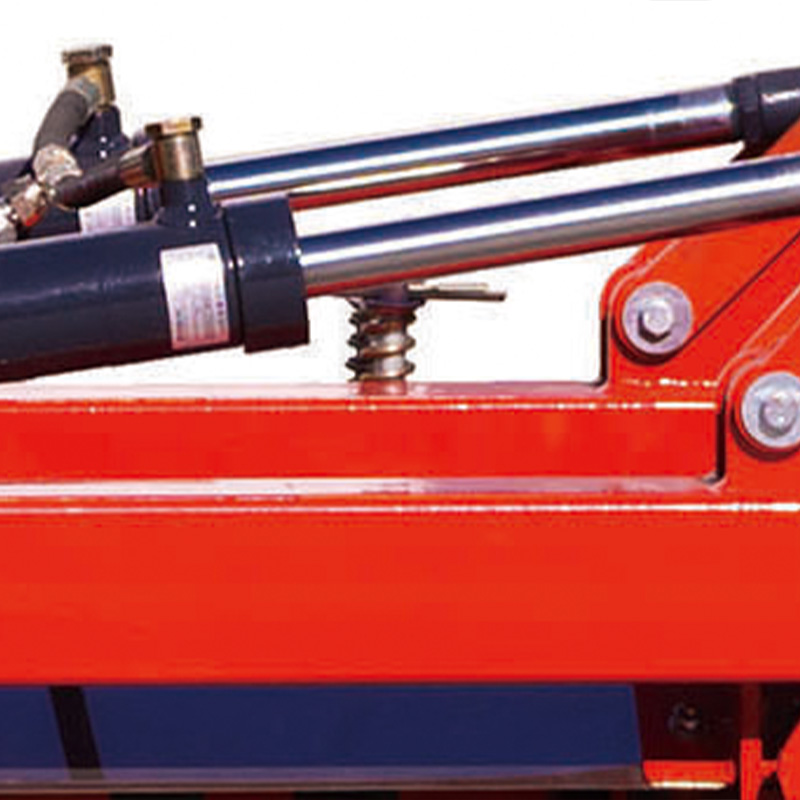

  • Hydraulic folding for easy transport and mounting.

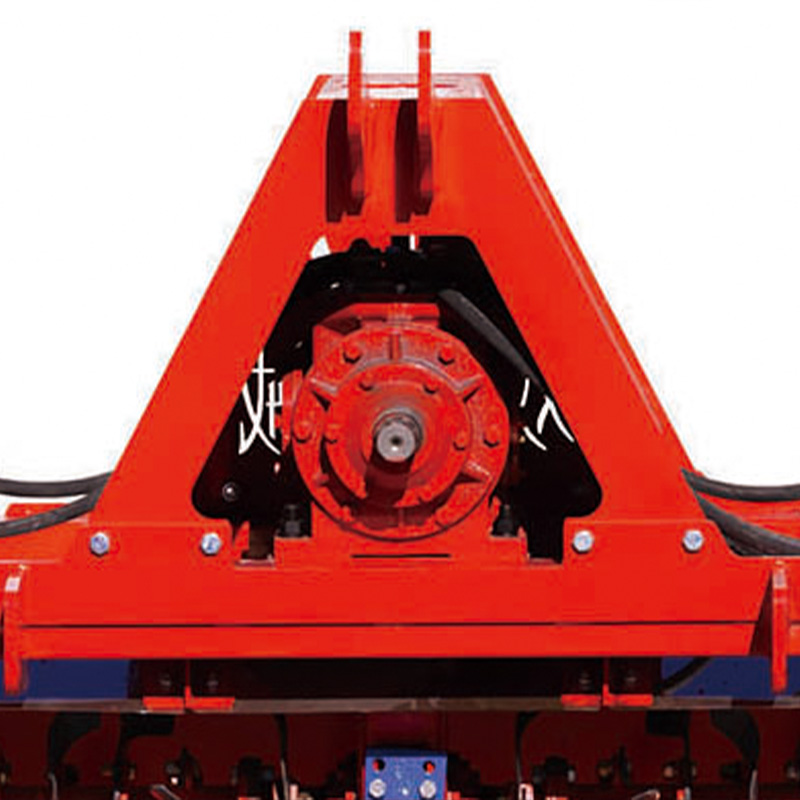

  • The integrated gantry suspension system offers enhanced structural integrity and stability.
